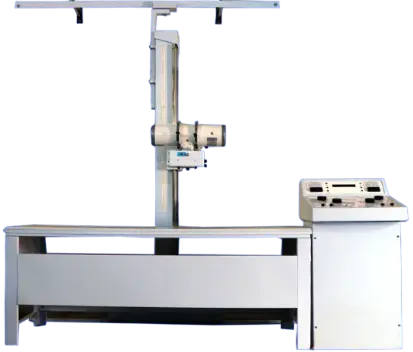

The 300 mA Fixed X-Ray Machine from Radiant Imaging Co. is a state-of-the-art diagnostic imaging system developed to meet the complete requirements of medical radiography and fluoroscopy in hospitals, clinics, nursing homes, and diagnostic centers.

This high-performance X-ray system offers exceptional image clarity, reliability, and operational efficiency. Designed with advanced features such as a double focus rotating anode tube, manual LBD for exposure centering, and digital display control panel, it ensures accurate diagnostic results every time.

The 300 mA Fixed X-Ray Machine features a microcontroller-based timer for precision exposure control and an overload protection system for tube safety. With its uniform KVP control in 15 steps, radiographers can achieve consistent image quality for different anatomical regions.

Both radiography and fluoroscopy procedures can be performed with patients in multiple positions using the bucky grid table mechanism, ensuring scatter-free radiography. The machine is fully compatible with horizontal tables and multicone tables (tilt 5-position), available in manual or motorized configurations.

🌟 Key Features:

• ✅ Double Focus Rotating Anode Tube for high-quality imaging.

• ✅ Manual Light Beam Diaphragm (LBD) for accurate exposure centering.

• ✅ Digital Control Panel with easy-to-read display.

• ✅ Uniform KVP adjustment in 15 steps for consistent imaging.

• ✅ Overload Indicator for protection of High Tension (HT) and Tube.

• ✅ Microcontroller-Based Timer for precise exposure control.

• ✅ Compatible with Horizontal and Multicone (5-Position Tilt) Tables.

• ✅ Optional Fluoroscopy with spot filming device.

• ✅ Ideal for Hospitals, Diagnostic Centers, and Nursing Homes.

⚙️ Technical Specifications:

• mA Technical Controls: 50mA, 100mA, 200mA, 300mA

• Power Supply: 440V AC, 50Hz, 3 Phase (Available in Single Phase)

• Timer Control: 0.02 – 5 sec (Switch Range)

• Voltage Compensator: 370 – 415V (15 Steps)

• KVP Controller: 45 – 100 KVP Range (15 Steps)

• Fluoroscopy (Optional): Spot Filming Device (Extra if required)

• Output: 24KW (As per IS 7620:1986 Standard)

• Table Options: Multicone (Tilt 5-Position) Manual or Motorized with Bucky Grid
